Precise ULD Redirection for Efficient Terminal Logistics
Need to change the direction of ULD flow within your air cargo terminal without compromising on speed or safety? The Right Angle Deck offers a robust and automated way to reroute ULDs at 90° angles, making it a key element of modern internal transport systems.

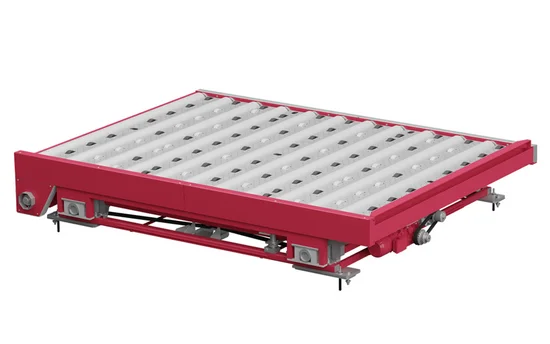

What Is the ULD Right Angle Deck?
The ULD Right Angle Deck is a powered conveyor module that enables automated 90° transfers of Unit Load Devices (ULDs) at system height. It combines longitudinal roller transfer and lateral wheel transfer in a single, motorised unit. An eccentric cam mechanism lifts and lowers the conveyor sections for seamless direction change — ideal for 2-, 3-, or 4-way junctions. Designed for 508 mm height systems and ULDs up to 6,800 kg.
Benefits of Lödige’s ULD Right Angle Deck
Designed for innovative air cargo terminals, our solutions provide measurable benefits by improving efficiency, ensuring safety and supporting seamless process integration.
Proven Features & Options
The Right Angle Deck comes with a set of proven features and optional enhancements. These ensure reliable performance in daily cargo operations and allow flexible adaptation to specific terminal layouts and process requirements.
Features / Options
- 5ft and 10ft
- Change of conveying direction by 90°
- 2-way, 3-way or 4-way direction
- ULD alignment functionality
Technical Data
Description | 5ft | 10ft | |
|---|---|---|---|
| Capacity | 1,600 kg | 6,800 kg | |
| Length | 1,800 mm | 3,500 mm | |
| Width | 1,800 mm | 2,700 mm | |
| Transfer height | 508 mm | ||
| Conveying speed | 0.3 m/s | ||
Automation Degree
Right Angle Decks enable automated changes in ULD transfer direction at 90° junctions. Equipped with powered rollers, driven wheels, sensors and motor brakes, they operate semi-automatically and integrate seamlessly into conveying systems. Connected to the Lödige Cargo Professional Suite, they support coordinated movement control and process monitoring within the terminal. Manual fallback options remain available for emergency handling. Right Angle Decks therefore provide an intermediate level of automation – ensuring reliable cargo flow and reducing manual intervention at system intersections.
Tools & Downloads
-
Air Cargo Terminal Equipment
Brochure, (07-2025)

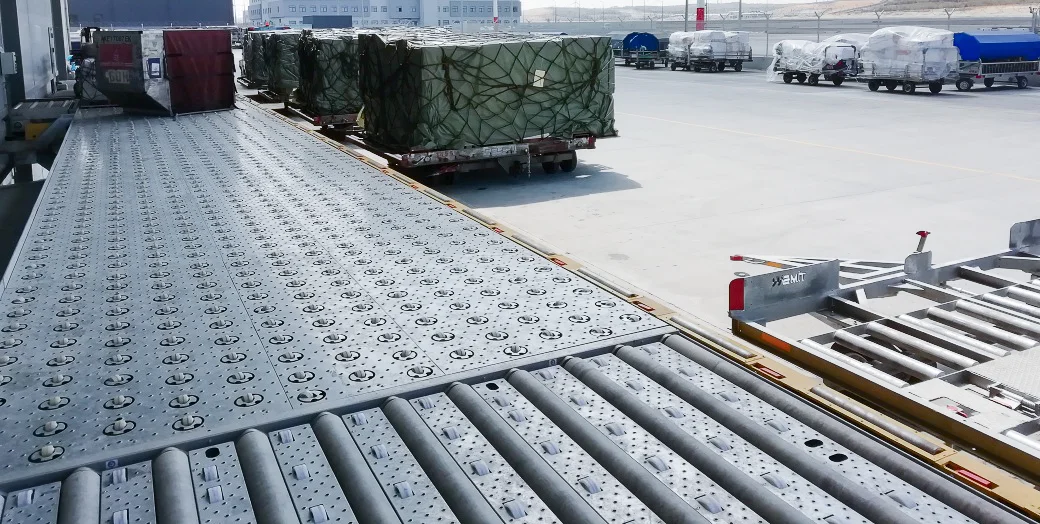

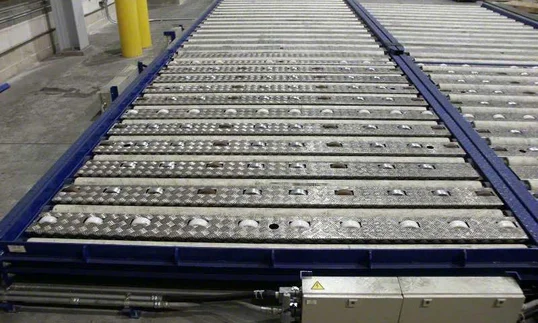

Right Angle Decks successfully in operation
Proven in practice, our solutions demonstrate their value worldwide every day.
The new COOL Nordic cargo hub at Helsinki Airport, known in the industry as the "COOL Terminal" is the most modern air cargo terminal in Europe and one of the newest air freight hubs in the world.
Related Products
Discover Equipment for ULD Handling
Explore related products that support every step of ULD handling in your terminal. From acceptance to storage and onward transfer, these solutions ensure efficiency, safety and smooth integration into your cargo flow.
Automated Guided Vehicles move ULDs flexibly across the terminal. Scalable, 24/7 available and safe – ideal for efficient cargo flows.
Elevating Workstations bring ULDs to the perfect height. Ergonomic build-up and breakdown that protect staff and speed up flows.
Turntables rotate ULDs up to 360° for smooth direction changes. Optional with Right-Angle Deck, they also enable 90° transfers in compact, automated layouts.
Truck Docks connect lorries and terminals. With scissor lifts and roller decks, they make ULD loading and unloading ergonomic, fast and reliable.
Elevating Transfer Vehicles (ETV) run on rails in storage aisles. They lift and move ULDs safely in high-bay racks, maximising vertical space and throughput.
Transfer Vehicles travel on rails in terminal aisles, linking workstations, storage and cold zones. They move ULDs fast, precise and safely across levels.
The Cargo Pallet Mover transports ULDs placed on ULD Support Pallets with precision. Battery-powered, agile and precise – perfect for peak handling.
ULD Support Pallets serve as a base for transporting and storing ULDs inside terminals. In combination with the Cargo Pallet Mover, they enable flexible, safe and efficient handling.
FlexLoader lifts and transfers ULDs flexibly between levels. A compact all-in-one device that boosts handling efficiency in tight spaces.
From Landside to Airside – Explore the Processes
Navigate through the key steps of air cargo handling and explore how our solutions support each process.
Right Angle Decks for Smooth ULD Flow
Ask our experts for the best configuration to optimise your cargo handling.
FAQs – ULD Right Angle Deck
Yes, the system is designed for both ULD sizes and ensures safe, automated transfer for each.
Absolutely. The Right Angle Deck is a core component of Lödige’s automated intra-terminal transport systems.
The deck uses an eccentric cam system to lift one conveyor section while lowering the other — enabling 90° redirection at the same height.
Transfer speed is 18 m/min. The maximum load capacity is 6,800 kg.
Yes, drive units can be disengaged, enabling manual operation if needed.
Yes, sensors ensure that ULDs are correctly aligned before transfer begins.
Yes, all ULD handling complies with current IATA guidelines.
The deck includes motor brakes, guard plates, and non-skid walkways for full safety.
It is floor-mounted and does not require a pit — simplifying installation.
